ASA 800

These types of valves prevents flow and fully closes in case the direction changes to reserve direction for any reason.

The pressure difference in the desired direction open and disc (or clapet) which lets the fluid to flow with very little friction loss.

They can be used in both horizontal or vertical lines.

They are especially suitable for low flow rates.

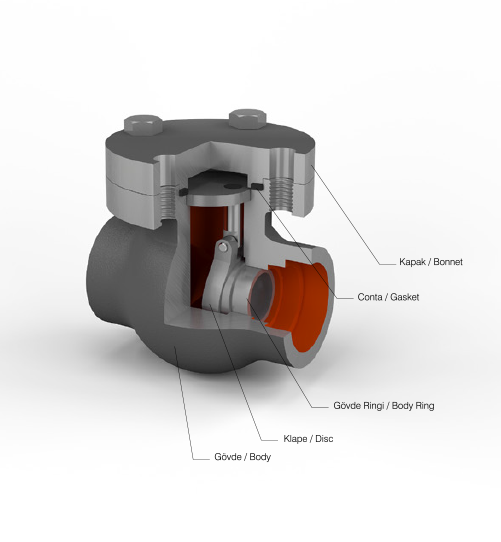

  PART NAME
 1    Body   Forged Steel
 2    Body Seat Face   Stainless Steel
 3    Body Ring   Stainless Steel
 4    Disc   Stainless Steel
 5    Gasket   Spiral Wound Gasket
 6    Bonnet   Forged Steel
 7    Bonnet Bolt   CrMo Steel
 8    Name Plate   Aluminium

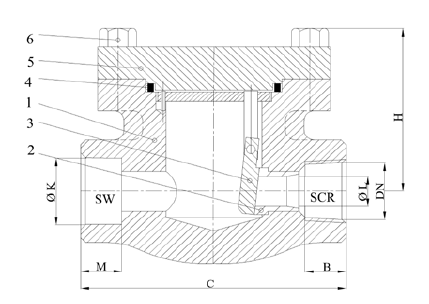

  ASA 800 Figure V 2300
          Size   Ø K   C   Ø L   H   B   M   App. W
  inch   mm   mm   mm   mm   mm   min   min   kg
  ½   15   22   84   8   47   13,5   10   1,2
  ¾   20   27,5   90,5   12,7   53   14   13   1,5
  1   25   34   114   17,5   69   17,5   13   2,5
  1 ¼   32   43   120,5   22,5   105   18   15   6,3
  1 ½   40   49   120,5   28,5   105   18,5   15   6,3
  2   50   61,3   130   35   131   19   16   9,1
