ASA 600

These types of valves opening and closing by quarter turn.

They provide high seal and flow capacity.

They are operated in both directions.

It is suitable to use as by-pass valve rather than providing high seal.

Due to the seal is provided by seating of plug and housing together exactly, being clean of the pipeline and not to enter any kind of solid particle between plug and housing are important.


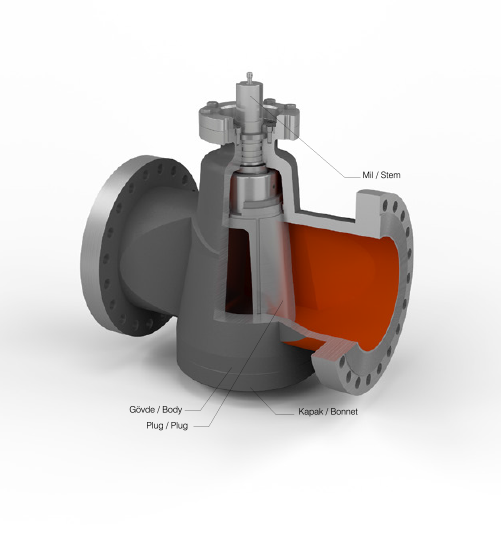

  PART NAME
 1    Body   Cast Steel
 2    Plug   Cast Steel
 3    Stem   Stainless Steel
 4    Check Valve   Stainless Steel
 5    Packing   Graphite
 6    Packing Gland   Stainless Steel
 7    Bonnet   Cast Steel
 8    Bonnet Stud Bolt   CrMo Steel
 9    Stop Washer   Carbon Steel
 10    Gasket   Spiral Wound Gasket
 11    Ball   Stainless Steel
 12    Lower Bonnet   Carbon Steel
 13    Bonnet Stud Bolt   CrMo Steel
 14    Pressure Screw   Carbon Steel

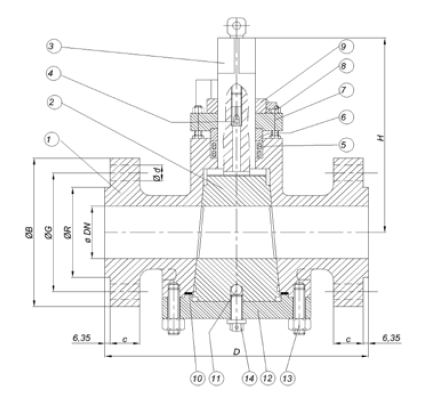

  ASA 600 Figure V 6030
          Size   Ø B   Ø G   Ø R   Ø d   C   D   H   App. W
  inch   mm   mm   mm   mm   mm   mm   mm   Regular & Vanturi Pattern   kg
  2   50   165   127   92,1   19   25,4   292   128   28
  3   80   210   168,3   127   22,2   31,8   355,6   140   56
  4   100   273   215,9   157,2   25,4   38,1   431,8   196   95
  6   150   356   292,1   215,9   28,5   47,8   558,8   256   215
  8   200   419   349,2   269,9   13,8   55,6   660,4   324   290
  10   250   508   431,8   323,8   35   63,5   787,4   417   495
  12   300   559   489   381   35   66,5   838,2   493   628
  14   350   603   527   412,8   38,1   69,9   889   594   868
  16   400   686   603,2   469,9   41,1   76,2   990,6   2900   1300
