VANASAN Cast & Forged Steel Valves
Forged process brings the particles of the steel closer which makes it denser and conseguently a robust material compared to cast steels.
Forged also gets rid of the imperfections and the possible voids in the original steel.
There for forged steel valves are ideal for petroleum refineries, oil and gas lines and power plants.

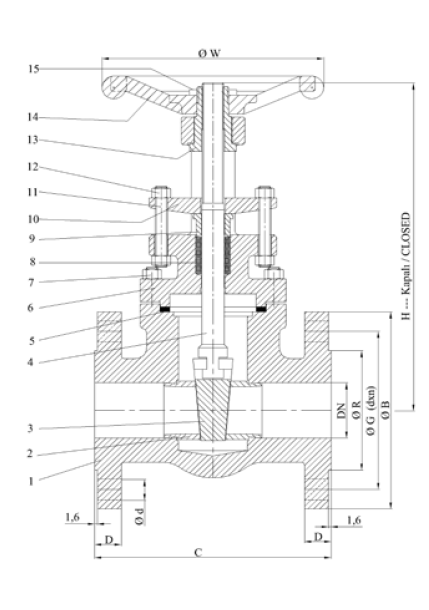

ASA 150 Figure V 2100 |
Size | C | H | D | Ø R | Ø G | Ø B | W | App. W | ||
inch | DN | mm | mm | mm | mm | mm | mm | mm | kg | |
½ | 15 | 108 | 134 | 11,2 | 34,9 | 60,3 | 89 | 96 | 2,9 | |
¾ | 20 | 117,5 | 143 | 12,7 | 42,9 | 69,8 | 99 | 96 | 3,5 | |
1 | 25 | 127 | 182 | 14,3 | 50,8 | 79,4 | 108 | 96 | 6 | |
1 ¼ | 32 | 139,5 | 228 | 15,9 | 63,5 | 88,9 | 117 | 130 | 8,5 | |
1 ½ | 40 | 165 | 228 | 17,5 | 73 | 98,4 | 127 | 130 | 11 | |
2 | 50 | 178 | 260 | 19,1 | 92,1 | 120,6 | 152 | 150 | 14 |
ASA 300 Figure V 2101 |
Size | C | H | D | Ø R | Ø G | Ø B | W | App. W | ||
inch | DN | mm | mm | mm | mm | mm | mm | mm | kg | |
½ | 15 | 139,5 | 134 | 14,2 | 34,9 | 66,7 | 95 | 96 | 4,5 | |
¾ | 20 | 152,5 | 143 | 15,7 | 42,9 | 82,6 | 117 | 96 | 5 | |
1 | 25 | 165 | 182 | 17,5 | 50,8 | 88,9 | 124 | 96 | 7 | |
1 ¼ | 32 | 177,8 | 228 | 19 | 63,5 | 98,4 | 133 | 130 | 11 | |
1 ½ | 40 | 190,5 | 228 | 20,6 | 73 | 114,3 | 156 | 130 | 12 | |
2 | 50 | 216 | 260 | 22,4 | 92,1 | 127 | 165 | 150 | 16 |
ASA 600 Figure V 2102 |
Size | C | H | D | Ø R | Ø G | Ø B | W | App. W | ||
inch | DN | mm | mm | mm | mm | mm | mm | mm | kg | |
½ | 15 | 165 | 134 | 14,2 | 34,9 | 66,7 | 95 | 96 | 4,5 | |
¾ | 20 | 190,5 | 143 | 15,7 | 42,9 | 82,6 | 117 | 96 | 5,5 | |
1 | 25 | 216 | 182 | 17,5 | 50,8 | 88,9 | 124 | 96 | 8 | |
1 ¼ | 32 | 228,5 | 228 | 20,6 | 63,5 | 98,4 | 133 | 130 | 12 | |
1 ½ | 40 | 241 | 228 | 22,4 | 73 | 114,3 | 156 | 130 | 14 | |
2 | 50 | 292 | 260 | 25,4 | 92,1 | 127 | 165 | 150 | 18 |
